BDP 2 system
This series of products is suitable for both commercial and residential use
Movement is both vertical and horizontal plate with parking for placing and taking back the car alone
BDP types are combined with PFP system for expansion of parking space
| Parking | prostor pro vozidlo | 5000x1850x1550 | 5200x1900x2050 |
| Max weight | to 2000kg | to 2500kg | |

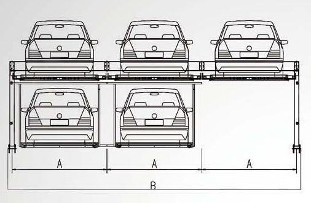

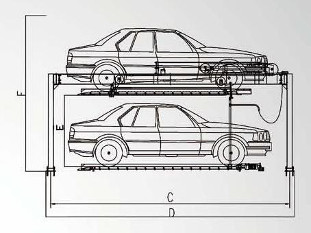

| Dimensions [mm] | a | 2 400 | 2 500 |
| d | 5 800 | 6 000 | |
| c | 5 560 | 5 760 | |
| e | 2 150 | 2 150 | |
| b | NxA+240 | NxA+240 | |
| f | from 3870 | from 3870 | |
| Motor | Lifting | 4kW | |
| 8-12m/min | |||
| Sliding | 0,2kW | ||
| 8m/min | |||
| Lifting speed [s] | to 50 | to 50 | |
| Power supply | 380V, 50/60Hz, 3Phase | ||
