TOR System

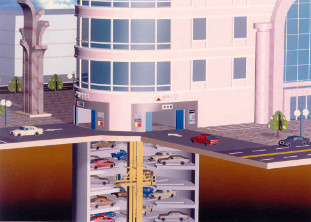

When selecting the TOR vehicle arrives before the entrance to the parking garage, which has a circular cross section.

 Its internal layout of each floor forms the shape of a Daisy, where each petal is on car space, twelve per level. The floor, which is designed for entry and exit (this may not be so, but if it is possible to implement this method is optional) has a trolley/shuttle with lifting scissors. The entrance and exit level can only have 9 places due to the need for suttle movement and waiting room.The vehicle is carried into the center ring for uplift. There is two vertical bearing elements located footbridge, which intra rotates around a vertical axis, while rising or going down. When arriving to the desired level the shuttle has repositioned the exact direction of the vehicle to place it into a parking space, then for retrieval fitted vehicle and then moves back to the sliding swivel bridge. This system needs to carry out surface area with a diameter of 21 to 21.5 m walls included. One entire floor can contain 12 vehicles (daisy shaped). Removing vehicles from the system is the same as fitting into it.
